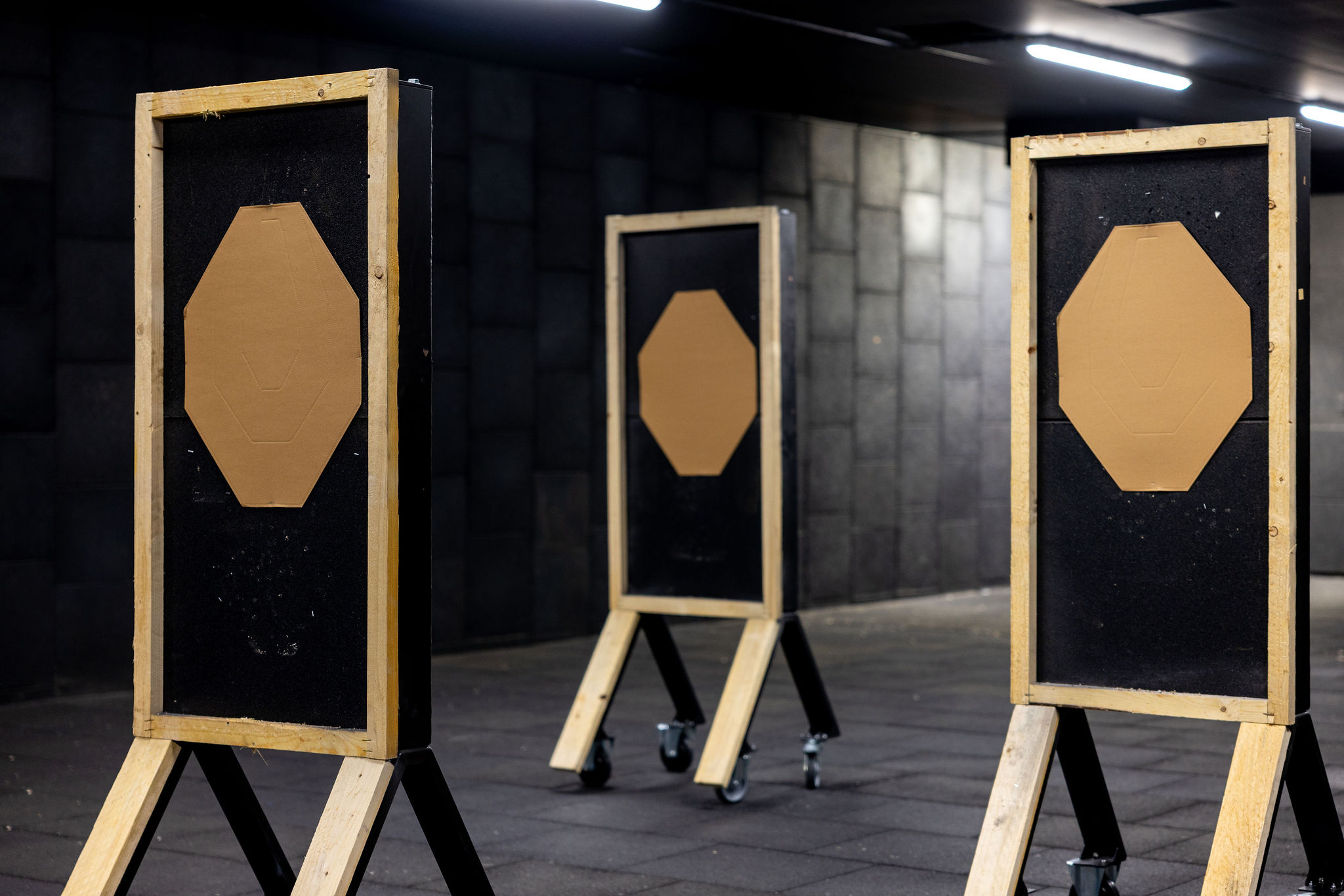

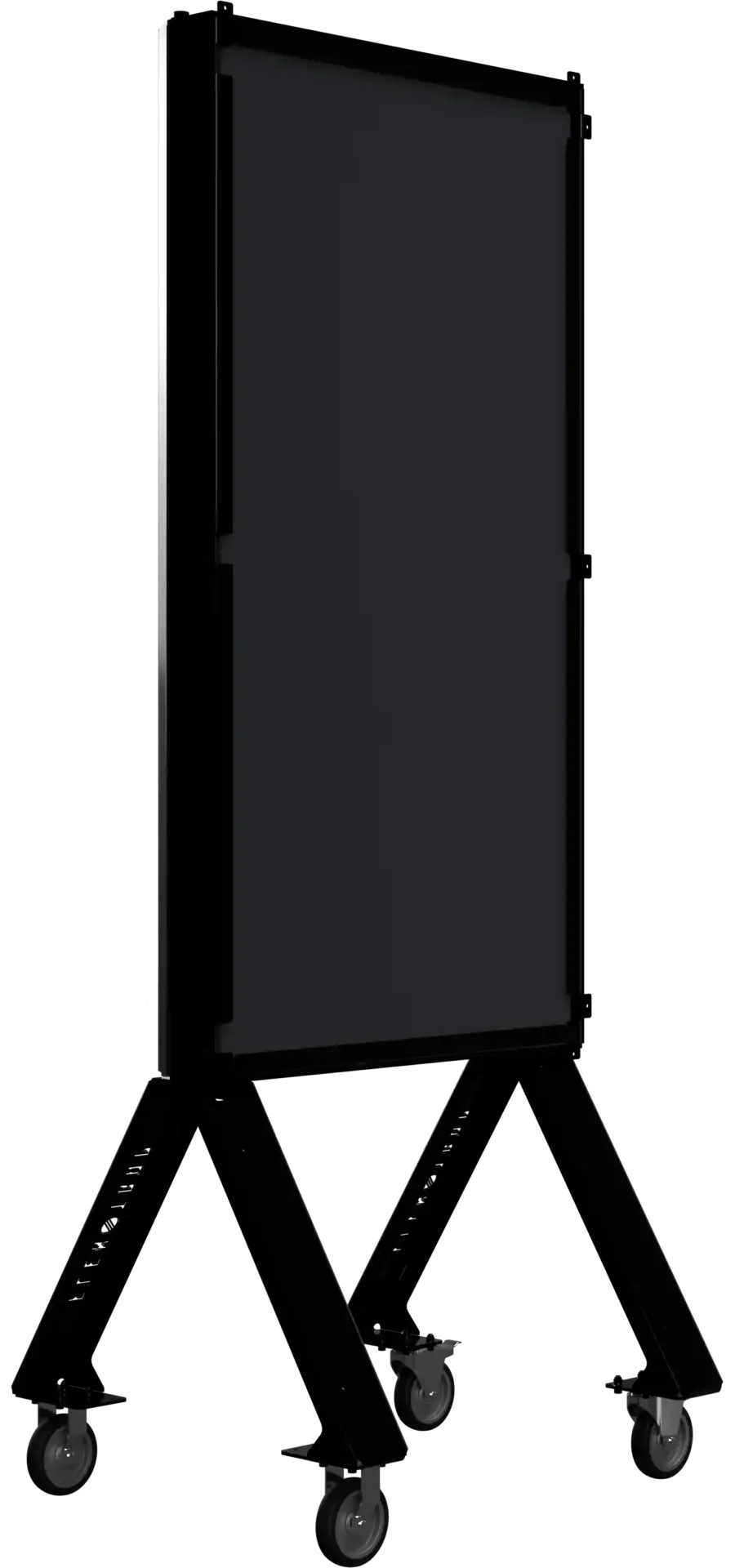

Spieth CS Move – Mobile Bullet Trap

The Spieth CS Move was developed for maximum flexibility in tactical and dynamic training environments. The system is fully rated for direct projectile impact and reliably collects bullets inside the module base, which can then be emptied quickly and easily.

Construction & Functionality

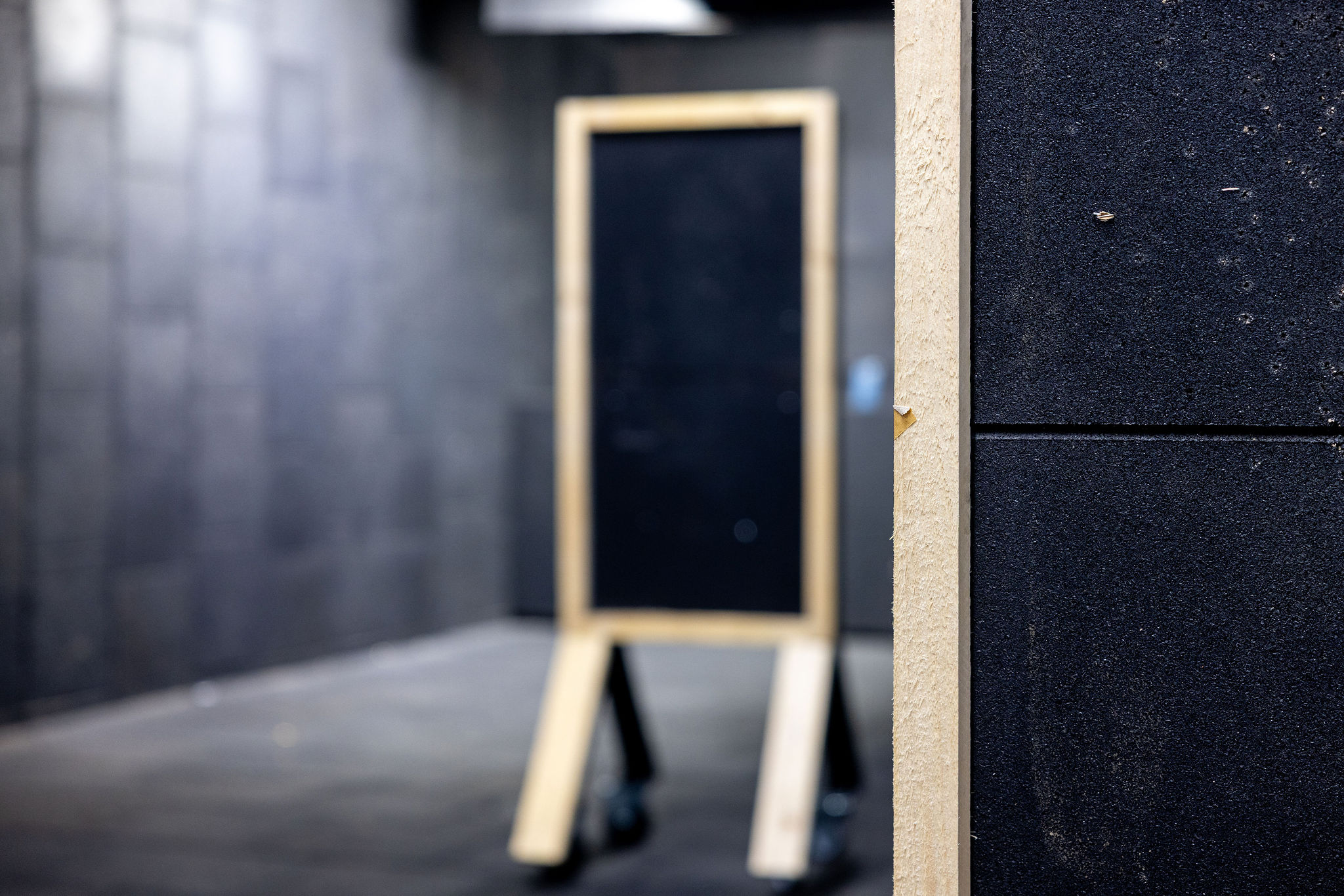

At the front of the module, a ballistic rubber mat minimizes ricochet risks when projectiles impact the rear section of the trap. The two-piece rear section has been specifically designed for easy maintenance and can be replaced quickly and conveniently by the user without specialized tools.

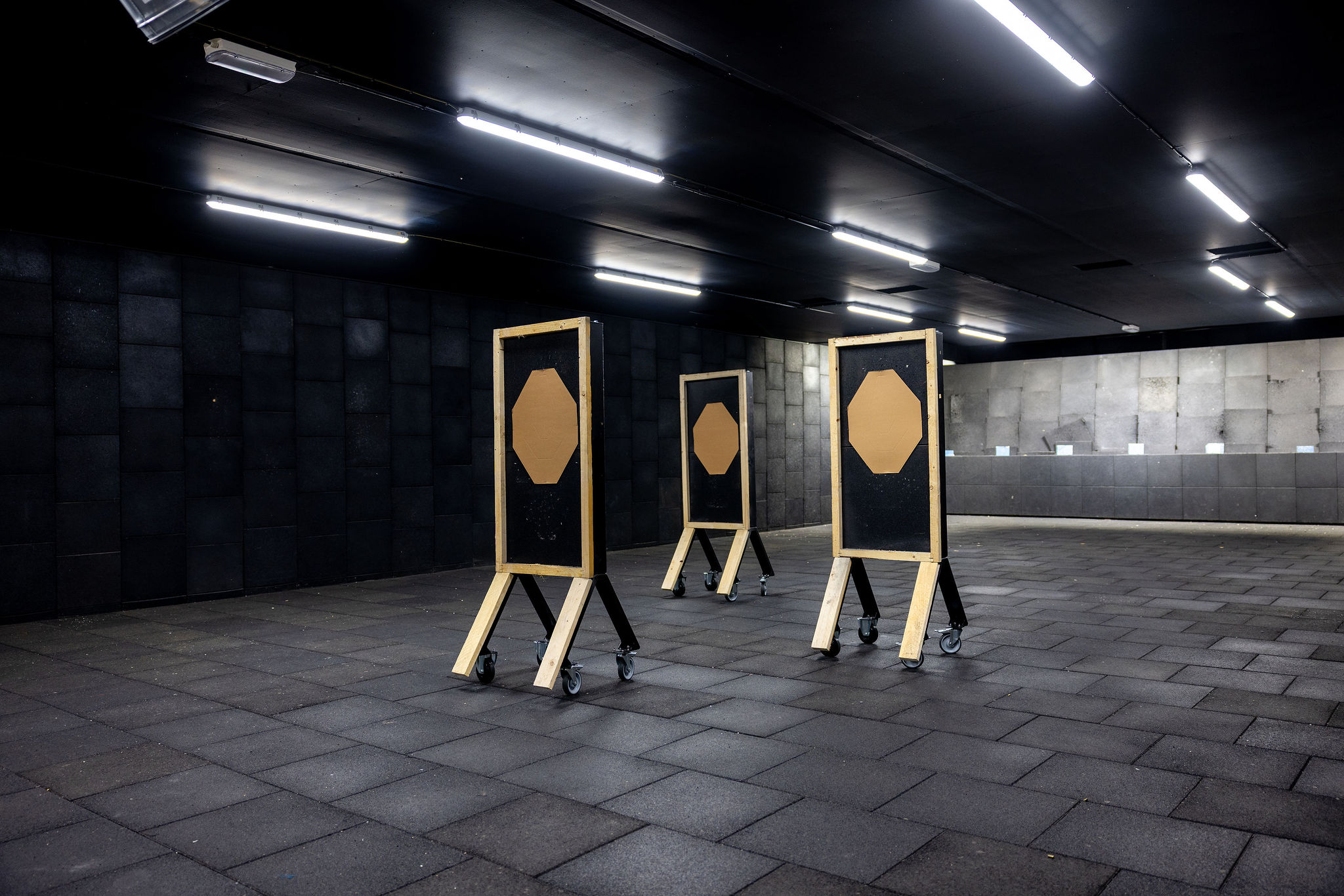

The CS Move is suitable for both indoor and outdoor use, providing maximum operational flexibility for a wide range of training scenarios.

Supported Calibers

• .22 LR (Long Rifle)

• 9×19 mm (9 mm NATO)

• 5.56×45 mm (5.56 NATO)

• 6.5×55 mm (Swedish Mauser)

• 7.62×51 mm (7.62 NATO)

• 9.3×62 mm (Hunting Ammunition)

Technical Highlights

• Optional spare parts subscription available

• Easy maintenance without special tools

• Capable of handling fire angles up to 15° horizontally and 15° vertically

• Operational in temperatures ranging from +50 °C to −40 °C

Performance

• Maximum impact energy: 4,500 J

• Maximum projectile velocity: 930 m/s

Art. No.: 800501
